2. Functional View

2.1. Components: Standardized Definition and Scope

OSIA provides seamless interconnection between multiple components part of the identity ecosystem.

The components are defined as follows:

  • The Enrolment component. Enrollment is defined as a system to register biographic and biometric data of individuals.

  • The Population Registry (PR) component.

    Population registry is defined as “an individualized data system, that is, a mechanism of continuous recording, or of coordinated linkage, of selected information pertaining to each member of the resident population of a country in such a way to provide the possibility of determining up-to-date information concerning the size and characteristics of that population at selected time intervals. The population register is the product of a continuous process, in which notifications of certain events, which may have been recorded originally in different administrative systems, are automatically linked on a current basis. A. method and sources of updating should cover all changes so that the characteristics of individuals in the register remain current. Because of the nature of a population register, its organization, and also its operation, must have a legal basis.” [1]

  • The UIN Generator component. UIN generator is defined as a system to generate and manage unique identifiers.

  • The Automated Biometric Identification System (ABIS) component. An ABIS is defined as a system to detect the identity of an individual when it is unknown, or to verify the individual’s identity when it is provided, through biometrics.

  • The Civil Registry (CR) component.

    Civil registration is defined as “the continuous, permanent, compulsory and universal recording of the occurrence and characteristics of vital events pertaining to the population, as provided through decree or regulation is accordance with the legal requirement in each country. Civil registration is carried out primarily for the purpose of establishing the documents provided by the law.” [2]

  • The Document Management System (DMS) component. DMS is defined as a system to manage the production and issuance of physical documents like ID Cards, passports, driving licenses, etc.

  • The Third Parties Services component.

Table 2.1 Components
ID Ecosystem Component Data Functions
  • Alpha*
  • UIN*
  • History*
  • Supporting documents*
  • Recording application
  • Collecting personal data
  • Alpha
  • UIN
  • History
  • Supporting documents
  • Identity attributes storage
  • Identity Life cycle management
  • Alpha
  • UIN
  • UIN generation
  • UIN
  • Biometric data (images and templates)
  • Authentication (1:1)
  • Identification (1:N)
  • Quality control and adjudication
  • Events
  • UIN
  • History
  • Supporting documents
  • Events storage
  • Certificate production
  • Workflow
  • Alpha
  • UIN
  • History
  • Supporting documents
  • Document data storage
  • Document Life cycle management
  • Document Production
  • Workflow
  • SMS and email server
Third Parties Services TBD KYC/auth

The components are represented on the following diagram:


Fig. 2.1 Components

2.2. Interfaces

To do

This chapter describes the following interfaces.

  • UIN management. This interface can be implemented by PR, by CR or by another system. We will consider it is provided by a system called UIN Generator.

  • Notifications. When data is changed, a notification is sent and received by systems that registered for this type of events. For instance, PR can register for the events birth emitted by CR.

  • Data access. A set of services to access data.

    The design is based on the following assumptions:

    1. All persons recorded in a registry have a UIN. The UIN can be used as a key to access person data for all records.
    2. The registries (civil, population, or other) are considered as centralized systems that are connected. If one registry is architectured in a decentralized way, one of its component must be centralized, connected to the network, and in charge of the exchanges with the other registries.
    3. Since the registries are customized for each business needs, dictionaries must be explicitly defined to describe the attributes, the event types, and the document types. See Data Access for samples of those dictionaries.
    4. The relationship parent/child is not mandatory in the population registry. A population registry implementation may manage this relationship or may ignore it and rely on the civil registry to manage it.
    5. All persons are stored in the population registry. There is no record in the civil registry that is not also in the population registry.
  • Biometrics.

  • Third party. Identity based services implemented on top of Identity system mainly Identity Verification and Identity Attribute sharing.

2.3. Components vs Interfaces Mapping

The interfaces described in this chapter are summarized in the following table:

Table 2.2 Components vs Interfaces Mapping
Interfaces Enroll PR UIN gen. ABIS CR ID Card Funct. Reg Third Parties
Notify event   U     U
Subscribe   U   U U U U
Unsubscribe   U   U U U U
Event callback   I   I I I I
UIN Management
Generate UIN   U I   U U
Data Access
Get Person Attributes U IU   U IU U U U
Match Person Attributes   IU     IU U U U
Verify Person Attributes   IU     IU U U U
Get Person UIN U IU     IU U U
Get document   IU     IU
Verify U     I   U U U
Identify U     I   U U U
Insert   U   I   U
Read   U   I   U U U
Update   U   I   U
Delete   U   I   U
Get Gallery   U   I   U U
Get Gallery content   U   I   U U
Third Party Services
Verify ID               I
Identify ID               I
Get Attributes               I
Get Attributes set               I


  • I is used when a service is implemented (provided) by a component
  • U is used when a service is used (consumed) by a component

2.4. Use Cases - How to Use OSIA

Introduction to be done

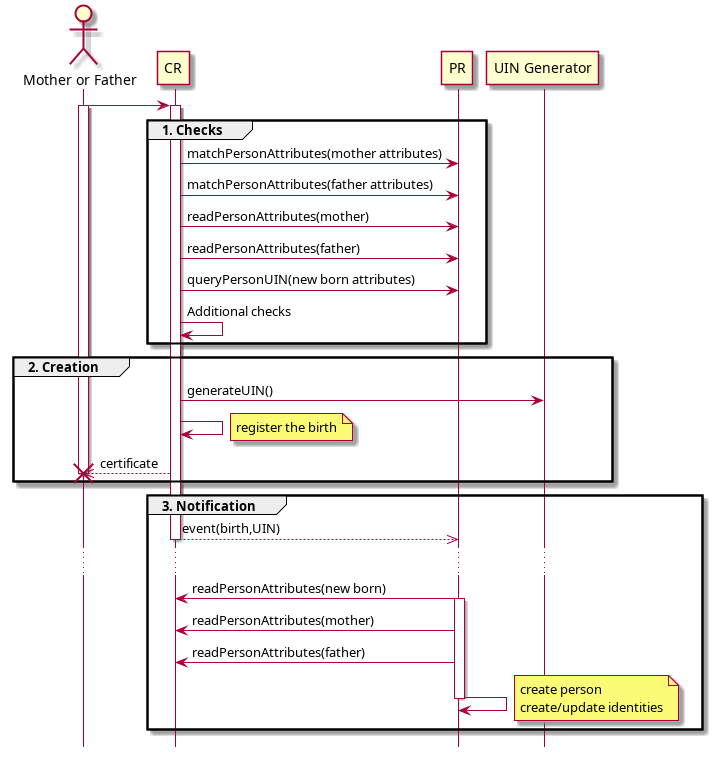

2.4.1. Birth Use Case

!include "skin.iwsd"
hide footbox
actor "Mother or Father" as parent
participant "CR" as CR
participant "PR" as PR
participant "UIN Generator" as UINGen

parent -> CR
activate parent
activate CR

group 1. Checks
    CR -> PR: matchPersonAttributes(mother attributes)
    CR -> PR: matchPersonAttributes(father attributes)
    CR -> PR: getPersonAttributes(mother)
    CR -> PR: getPersonAttributes(father)
    CR -> PR: getPersonUIN(new born attributes)
    CR -> CR: Additional checks

group 2. Creation
    CR -> UINGen: createUIN()
    CR -> CR
    note right: register the birth

    CR -->> parent: certificate
    destroy parent

group 3. Notification
    CR ->> PR: notify(birth,UIN)
    deactivate CR


    PR -> CR: getPersonAttributes(new born)
    activate PR
    PR -> CR: getPersonAttributes(mother)
    PR -> CR: getPersonAttributes(father)
    PR -> PR
    note right: create/update identities
    deactivate PR

Fig. 2.2 Birth Use Case

  1. Checks

    When a request is submitted, the CR may run checks against the data available in the PR using:

    • matchPersonAttributes: to check the exactitude of the parents’ attributes as known in the PR
    • getPersonAttributes: to get missing data about the parents’s identity
    • getPersonUIN: to check if the new born is already known to PR or not

    How the CR will process the request in case of data discrepancy is specific to each CR implementation and not in the scope of this document.

  2. Creation

    The birth is registered in the CR. The first step after the checks is to generate a new UIN a call to createUIN.

  3. Notification

    As part of the birth registration, it is the responsibility of the CR to notify other systems, including the PR, of this event using:

    • notify: to send a birth along with the new UIN.

    The PR, upon reception of the birth event, will update the identity registry with this new identity using:

    • getPersonAttributes: to get the attributes of interest to the PR for the parents and the new child.

2.4.2. Death Use Case

To be completed

2.4.3. Marriage Use Case

To be completed

2.4.4. Deduplication

During the lifetime of a registry, it is possible that duplicates are detected. This can happen for instance after the addition of biometrics in the system. When a registry considers that two records are actually the same and decides to merge them, a notification must be sent.

!include "skin.iwsd"
hide footbox
participant "PR" as PR
participant "CR" as CR

PR -> PR: deduplicate()
activate PR

PR ->> CR: notify(duplicate,[UIN])
deactivate PR


CR -> PR: getPersonAttributes(UIN)
activate CR
activate PR
CR -> CR: merge()
deactivate PR
note right: merge/register duplicate
deactivate CR

Fig. 2.3 Deduplication Use Case

How the target of the notification should react is specific to each subsystem.

2.4.5. ID Card Request

To be completed

2.4.6. Bank account opening Use Case

!include "skin.iwsd"
hide footbox
actor "Citizen" as citizen
actor "Bank attendant" as bank
participant "Third Party" as usage
participant "PR" as PR

citizen -> bank : Go to agency
activate citizen
activate bank

group 1. Verify Identity
    citizen -> bank : UIN + Biometrics
    deactivate citizen
    activate usage
    bank -> usage : verifyIdentity(UIN, biometric or civil data or credential)
    usage -> bank : Y/N
    bank -> bank  : create account for UIN
group 2. Get certified Attributes
    bank -> usage : getAttributeSet (UIN, attribute set name)
    usage -> PR : getPersonAttributes(UIN)
    usage -> bank : List of attributes values
    note right: fill-in attributes in bank account
deactivate citizen
deactivate bank

Fig. 2.4 Bank account opening Use Case

2.4.7. Police identity control Use Cases

!include "skin.iwsd"
hide footbox
actor "Citizen" as citizen
actor "Policeman" as police
participant "Third Party" as usage
participant "ABIS" as ABIS
participant "PR" as PR

citizen -> police : Show ID card
citizen -> police : Capture fingerprint
activate citizen
activate police

group 1. Verify Identity
    citizen -> police : UIN + Biometrics
    deactivate citizen
    activate usage
    police -> usage : verifyIdentity(UIN, biometric or civil data or credential)
    usage -> police : Y/N
group 2. Show corresponding attributes
    police -> usage : getAttributeSet (UIN1, attribute set name)
    usage -> PR : getPersonAttributes(UIN1)
    usage -> police : List of attributes values
    police -> usage : getAttributeSet (UIN2, attribute set name)
    usage -> PR : getPersonAttributes(UIN2)
    usage -> police : List of attributes values
    police -> usage : getAttributeSet (UIN3, attribute set name)
    usage -> PR : getPersonAttributes(UIN3)
    usage -> police : List of attributes values
    note right: display attributes for each candidates

Fig. 2.5 Collaborative identity control


[1]Handbook on Civil Registration and Vital Statistics Systems: Management, Operation and Maintenance, Revision 1, United Nations, New York, 2018, available at: https://unstats.un.org/unsd/demographic-social/Standards-and-Methods/files/Handbooks/crvs/crvs-mgt-E.pdf , para 65.
[2]Principles and Recommendations for a Vital Statistics System, United Nations publication Sales Number E.13.XVII.10, New York, 2014, paragraph 279
